FAQ

How to identify my machine model and serial number?
For the LG Commercial Laundry Washer and Dryer

The model and serial number are located inside the door of the washer and dryer.

Model Identification:

Model Name Washer Dryer
LG GIANT C F1069FD RP1329A
LG GIANT C PLUS FH069FDP RP1329A
LG GIANT C PRO FH069FDF RP1329A
RV1329A7 (Electric Dryer)
LG GIANT C MAX CWG27MDCRB CDG27RUCPB
LG TITAN C WASHER ONLY FH0C7FD
LG TITAN C FAST WASHER ONLY FH0C7FD3W
LG TITAN C MAX CWT29MDCRB CDT29MUCPB
For LG Styler

The model/serial label is affixed to the right hand side panel.

For the LG Commercial Laundry Washer and Dryer

The model and serial number are located inside the door of the washer and dryer.

Model Identification:

Model Name Washer Dryer
LG GIANT C F1069FD RP1329A
LG GIANT C PLUS FH069FDP RP1329A
LG GIANT C PRO FH069FDF RP1329A
RV1329A7 (Electric Dryer)
LG GIANT C MAX CWG27MDCRB CDG27RUCPB
LG TITAN C WASHER ONLY FH0C7FD
LG TITAN C FAST WASHER ONLY FH0C7FD3W
LG TITAN C MAX CWT29MDCRB CDT29MUCPB
For LG Styler

The model/serial label is affixed to the right hand side panel.

How to operate my machines?
For the LG Commercial Laundry Washer and Dryer
PREPARATION
Precautions for fabric care before wash cycle
  1. Washer Capacity is 10.2 kg
  2. 8 kg is the recommended maximum weight of dry clothes
  3. Check all pockets to make sure that they are empty
    • Items such as clips, matches, pens, coins and keys can damage both your washer and your clothes.
  4. Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.
  5. Pretreat heavily stained areas before washing.
    • Doing so will produce clean, stain-free results.
  6. Combine large and small items in a load. Load large items first.
  7. The washer can be fully loaded, but the drum should not be tightly packed with items.
    • The door of the washer should close easily
  8. Do not wash waterproof clothes.
    • This may cause abnormal vibration, or may cause the load to bounce, which could damage the tub.
  9. Check if there are any other foreign objects in the door seal and take extra care that clothes do not get caught there.
    • Foreign objects in the door seal may stain clothes, and water may leak if clothes get caught in the door seal.
  10. Wash underwear or small, light items in a laundry net.
    • Small, light items may get caught in the door seal, and a brassiere hook may damage other items or the tub.
  11. Brush heavy soil, dust or hair off fabrics before washing.
    • Laundry may not wash clean if there is dirt or sand on the fabrics, or they may damage due to particles rubbing against sheer fabrics.
  12. Wash blankets individually.
    • Washing more than one blanket together may produce unclean results due to tangling or an unbalanced load.
  13. Always separate fabrics according to their colors and wash them separately to prevent colors from running.
    • Fabrics may damage or become stained due to fabric dyes running or due to foreign objects transferring from one fabric to another.
  14. Please wash Comforters individually. GIANT MODELS can only handle single and double comforters. TITAN C can handle queen and king size comforter.
  15. Before loading the clothes make sure the clothes weigh only 8 kg.
  16. Close the door.

Note: Do not load shoes, stuff toys, bags and plastics.

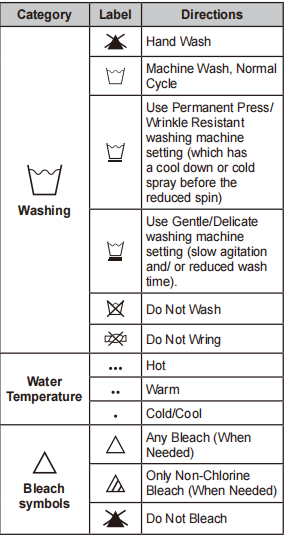

Fabric care labels

Most articles of clothing feature fabric care labels that include instructions for proper care.

Sorting laundry

It is recommended that you sort laundry into similar loads that are washable in the same cycle.
Refer to the following chart for sorting clothes

Color Whites / Lights / Darks
Soil Heavy / Normal / Light
Fabric Delicates / Easy Care / Sturdy Cottons
Lint Lint Producers / Lint Collectors
How to wash better

It is recommended to follow the below guide for better wash performance.

Load Type Recommended Capacity How to Wash Better
Everyday Clothes 8 kg maximum Frontload washers use dropping action for wash performance. Therefore, it is better to NOT fully load the drum. Oversudsing also prevents efficient wash performance
Blanket / Comforters 1 per Load only Do not use 2 blankets / comforters with big differences in size.It may not extract properly. Use similar-sized blankets
Bed Sheets Less than 5kg Any Bleach (When Needed)
Carpet/Rug Do Not Use
Footwear Do Not Use
Pillow / Stuff Toys Do Not Use
Machine Instructions
Laundry loading guide
Step 1

Load clothes and close the door

Helpful Tips for Loading Clothes in a Washer.

  1.  Always follow your garments care labels.
  2.  Make sure the equipment is empty before loading.
  3.  Check your garment carefully. (NO coins, keys, papers, sharp objects, etc.).
  4.  Shake dust and dirt off your garments BEFORE loading into equipment.
  5.  Do not overload the equipment
Step 2

Select Cycle and push the “START” button

Helpful Tips for Selecting Cycle.

  1.  “PUSH” is already on the display of control panel.
  2.  Push the “HOT” button. (for Hygiene Cycle) 1 hr and 26 mins.
  3.  Push “WARM” button. (Initial minutes of the operation will appear on the control panel display.).
  4.  Push “START” (Door will be locked and the operation will start.).
  5.  Add Super Wash only available for OPL/Manual Users Only.
    NO1 is for Rinse And Spin Only (24 Mins).
    NO2 is for Spin Only (11 mins).
Step 3

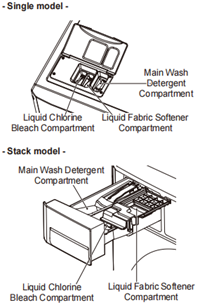

Loading the dispenser

Helpful Tips for Loading the dispenser.

  1.  Please ensure that the water flow in the dispenser has started before adding liquid detergent.
  2.  Please strictly use only the recommended brands of liquid detergent, such as Ariel, Tide, Breeze and Surf.
  3.  To ensure the best results, please use a maximum of 2 twin packs of Ariel, Tide, or 2 sachet of Surf for an 8kg load for LG Giant C Max and 13kg load for LG Titan C Max. For Breeze, limit the use to only 1 twin pack, as this detergent produces more suds compared to other brands. If you are washing 5kg of clothes or less, please reduce the amount of liquid detergent to prevent oversudsing.
  4.  For bleach, please use Zonrox Colorsafe only. If using Zonrox Colorsafe, kindly reduce the amount of liquid detergent to prevent oversudsing and place it together with the detergent in the liquid detergent compartment.
  5.  For fabric softener, always follow the manufacturer’s recommendations. Do not exceed the maximum fill line, as using too much may result in stained clothes. Never pour fabric softener directly onto the load or into the drum.
Step 4

Unload clothes after the cycle is finished.

Helpful Tips for Unloading clothes from the washer.

  1.  Please do not open the washer door while the machine is in operation. Opening the door during a cycle may interrupt the wash process and could potentially damage the machine.
  2.  The machine stops and the display shows ‘End’ with beep sound.
  3.  Promptly remove wet clothes for the equipment after wash cycle is complete.
Dryer
IMPORTANT SAFETY INSTRUCTIONS
BASIC SAFETY PRECAUTIONS
  WARNING To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
  • Read all instructions before using the dryer.
  • Before use, the dryer must be properly installed.
  • Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
  • Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.
  • Do not reach into the dryer if the drum or any other part is moving.
  • Do not tamper with controls.
  • Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.
  • Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
  • Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
  • Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
  • The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.
  • Do not install or store the dryer where it will be exposed to the weather.
  • Clean lint screen before or after each load.
  • Do not dry unwashed items in the tumble dryer.
  • Items that have been soiled with substances such as cooking oil, acetone, alcohol,petrol,kerosene,spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
  • Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
  • The final part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
  • Never operate the dryer without lint filter in place. Never operate the dryer with a wet lint filter.
  • Remove all objects from pockets such as lighters and matches.
  • Electric LG Giant C Pro Dryer and Gas Type LG Giant C Max Dryer Max capacity is 10kg allowable load is 8kg.
  • Gas Type LG Titan C Max Dryer Max capacity is 15kg allowable load is 13kg.

Drying Instructions

Step 1

Clean the lint filter before every use.

Step 2

Load Clothes and close the door firmly

Step 3

Select Cycle and push the “START” button

Step 4

Unload clothes after the cycle is finished.

Helpful Tips

  1.  Always follow your garments care labels.
  2.  Make sure the equipment is empty before loading
  3.  Check your garment carefully. (NO coins, keys, papers, sharp objects, etc.).
  4.  Shake dust and dirt off your garments BEFORE loading into equipment.
  5.  Do not overload the equipment

Removal tips for common types of stains

  1. Oil and Grease Stains
    • Method: Sprinkle baking soda, cornstarch, or baby powder on the stain and let it sit for 15-30 minutes. Gently brush off the powder, then apply dish soap and let it sit for a few minutes before washing with hot water.
    • Tip: Treat the stain as quickly as possible to prevent it from setting.
  2. Blood Stains
    • Method: Rinse the fabric with cold water as soon as possible. Soak the stain in cold water with a bit of salt or hydrogen peroxide for 15-30 minutes, then wash normally.
    • Tip: Never use hot water, as it can set the stain.
  3. Wine or Coffee Stains
    • Method: Blot the stain with a clean cloth. Apply a mixture of baking soda and water or white vinegar directly on the stain and let it sit for 10-15 minutes. Then, wash the fabric with cool water.
    • Tip: Act fast to prevent the stain from setting.
  4. Ink Stains
    • Method: Dab the ink stain with rubbing alcohol using a cotton ball or cloth. Blot until the stain lifts, then rinse with cold water. Wash as usual.
    • Tip: Avoid rubbing, as it can spread the ink.
  5. Grass Stains
    • Method: Apply a solution of vinegar and water or rubbing alcohol directly onto the stain. Scrub gently and then wash the fabric with enzyme-based detergent.
    • Tip: Pre-treat the stain before washing for better results.
  6. Sweat Stains
    • Method: Mix baking soda with water to form a paste, apply it to the sweat stains, and let it sit for 30 minutes before washing.
    • Tip: White vinegar can also help in removing odor and buildup.
  7. Chocolate Stains
    • Method: Mix baking soda with water to form a paste, apply it to the sweat stains, and let it sit for 30 minutes before washing.
    • Tip: White vinegar can also help in removing odor and buildup.
  8. Gum Stains
    • Method: Harden the gum by placing the fabric in the freezer or applying ice cubes directly to the gum. Once it hardens, gently scrape it off using a blunt object like a butter knife. If any residue remains, apply rubbing alcohol or white vinegar, then wash the fabric.
    • Tip: Act quickly to prevent the gum from embedding deeper into the fabric.
  9. Deodorant Stains
    • Method: Mix baking soda and water to form a thick paste. Apply the paste to the deodorant stain and let it sit for 30 minutes before washing with warm water. Alternatively, rubbing alcohol or white vinegar can help remove buildup.
    • Tip: For white clothing, hydrogen peroxide can be effective on stubborn stains.
  10. Rust Stains
    • Method: Apply lemon juice directly to the rust stain, then sprinkle salt over the stain. Let it sit for a few hours in direct sunlight if possible, as this will help break down the rust. Afterward, rinse with water and wash as usual.
    • Tip: Use a commercial rust remover for tougher stains if needed.
  11. Yellowing (from age or sweat)
    • Method: Soak the yellowed fabric in a mixture of white vinegar and water for 30-60 minutes. For extra cleaning power, add hydrogen peroxide to the solution. Wash the fabric in warm water afterward.
    • Tip: For delicate fabrics, a gentle soak in oxygen bleach can restore brightness without damaging the material.
  12. Mud Stains
    • Method: Let the mud dry completely, then brush off as much as possible. Apply a mixture of liquid laundry detergent and water, and gently scrub the stain. Rinse with cool water, then wash as usual.
    • Tip: Avoid using hot water, as it can set the stain. Be patient with mud stains—they may require a second wash.
  13. Fruit Juice Stains
    • Method: Blot the stain with a clean cloth, then soak the fabric in cold water for about 30 minutes. Apply white vinegar or lemon juice, followed by washing in cold water.
    • Tip: The quicker you treat the stain, the easier it is to remove.
  14. Paint Stains (Water-based)
    • Method: Rinse the stain under cold water while it’s still wet. Apply laundry detergent or dish soap to the stain and scrub gently. Rinse and repeat if necessary before washing.
    • Tip: For oil-based paint, you may need to use paint thinner or turpentine to lift the stain before washing.
  15. Makeup Stains
    • Method: For lipstick or foundation stains, dab the area with rubbing alcohol or makeup remover. Blot with a clean cloth and repeat if necessary. Wash the fabric with regular detergent afterward.
    • Tip: Always blot, never rub, to prevent spreading the stain further.
  16. Glue or Adhesive Stains
    • Method: Soak the stain in warm water and gently scrape off the glue with a blunt tool. Apply acetone (nail polish remover) to the remaining glue, let it sit for a few minutes, then wash.
    • Tip: Always test acetone on a hidden part of the fabric first to ensure it doesn’t damage the material.
  17. Tomato Sauce Stains
    • Method: Scrape off excess sauce, then rinse the fabric with cold water. Apply dish soap or laundry detergent, scrub gently, and rinse again. For stubborn stains, soak in vinegar or lemon juice before washing.
    • Tip: Avoid letting tomato-based stains sit, as they can become harder to remove over time.
  18. Dye Transfer Stains
    • Method: Soak the stained fabric in oxygen bleach or a color-safe bleach solution for 1-2 hours, then wash in hot water. If the dye persists, repeat the process.
    • Tip: Avoid drying the fabric until the dye is completely removed, as heat can set the stain.
